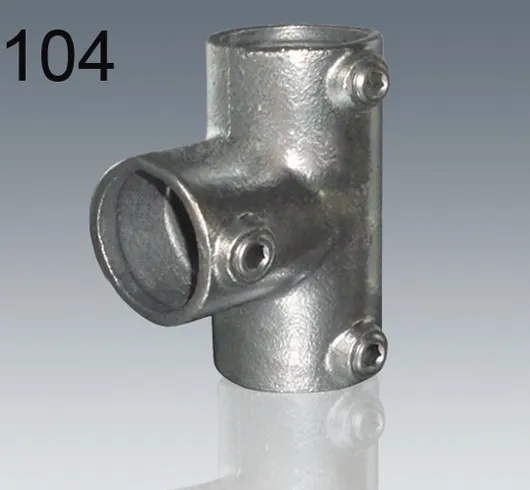

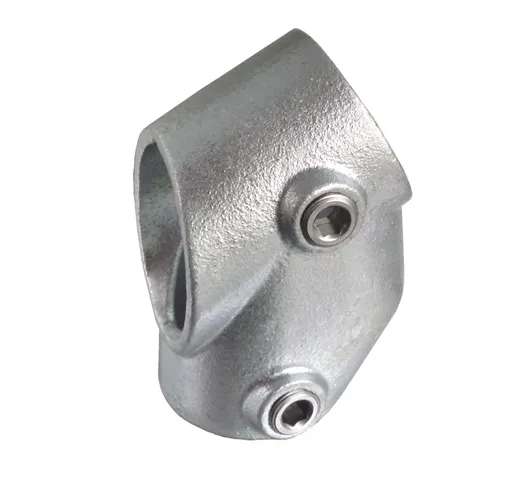

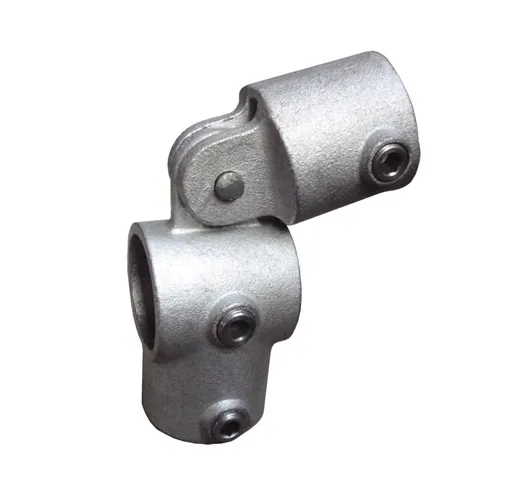

Malleable iron pipe clamps fittings used to connect steel tubing, different rang of fittings can combined with standard tubing enables the users to create any structure imaginable for use in all manner of industries, such as handrail fittings, shelving, car ports, shopping trolley bays, support frameworks ,outdoor sport, exhibition stands, play areas and so on. Instead of the orginal welding method, the tube can be quickly connected with only a simple allen key, which is more simple and convenient. You should select the correct fittings and size for any application. If you want to know more technical support or assistance regarding the use and interpretation of the products, pls contact.
| Pipe Clamp size | Nominal Bore | Outside Diameter |
| T21 | 1/2’’ | 21.3mm |
| A27 | 3/4’’ | 26.9mm |
| B34 | 1’’ | 33.7mm |
| C42 | 1-1/4’’ | 42.4mm |
| D48 | 1-1/2’’ | 48.3mm |
| E60 | 2’’ | 60.3mm |
Description | Chemical Properties | Physical Properties | |||||
Lot No. | C | Si | Mn | P | S | Tensile Strength | Elongation |
ALL PALLET | 2.76 | 1.65 | 0.55 | LESS THAN 0.07 | LESS THAN 0.15 | 300 Mpa | 6% |
Our product is manufactured according to the requirements of EN-GJMB-300-6 with tensile strength min 300 N/mm2 and elongation min 6%.Usually the real tensile strength is higher than 300, it may reach to 330 and the elongation may reach to 8%.That is to say our material is between EN-GJMB-300-6 and EN-GJMB-330-8.
