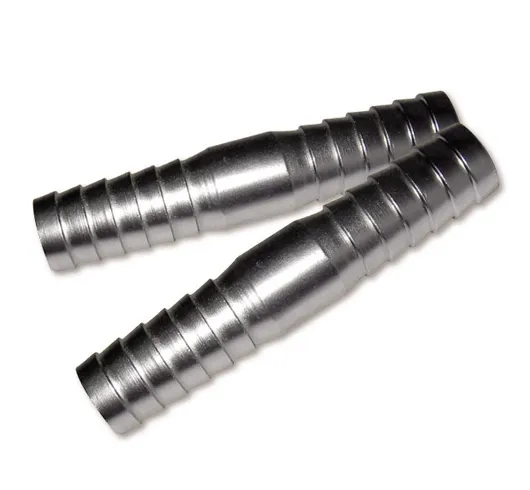

Carbon steel hose menders have precise sized, better mechanical behavior and tightness, and used widely in construction energy, processing, and fabrication industries. We provide a comprehensive range of Carbon Steel Nipple. And it is been manufactured by technical team using high grade carbon steel & technologically advance machinery.

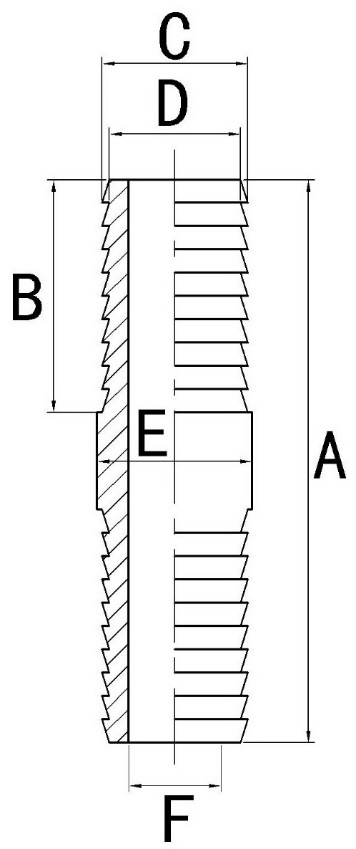

| Thickness （MM） | A (MM) | B （MM） | C （MM） | E（MM） | Unit Weight (G) | |
| （MM） | (MM) | (MM) | （MM） | (MM) | (g) | |
| 1/2'’ | 2.5 | 100 | 35 | 14 | 20 | 90 |
| 3/4'’ | 2.5 | 100 | 35 | 20.6 | 24 | 114 |
| 1'’ | 3 | 100 | 35 | 26.5 | 30 | 165 |
| 1-1/4'’ | 3 | 100 | 40 | 33 | 40 | 226 |
| 1-1/2'’ | 3 | 100 | 40 | 38 | 45 | 249 |
| 2'’ | 3 | 100 | 40 | 51 | 56 | 320 |
| 2-1/2'’ | 3.25 | 130 | 45 | 64 | 72 | 620 |
| 3'’ | 4 | 130 | 50 | 77 | 85 | 880 |
| 4'’ | 4 | 150 | 58 | 101 | 110 | 1220 |
| 5'’ | 4 | 180 | 70 | 127 | 135 | 1580 |
| 6'’ | 4 | 200 | 80 | 150 | 160 | 1820 |
| 8'’ | 4 | 300 | 135 | 204 | 214 | 5200 |
Material: Carbon steel
Surface: Zinc-plated, unplated
Providing high quality and comprehensive service. Welcome to contact us and get a quick response.
