Carbon steel nipples feature precise dimensions, superior mechanical properties and excellent sealing performance. They are widely used in construction, energy, processing and fabrication industries. We supply a comprehensive range of carbon steel nipples. Our technical team manufactures them from high‑grade carbon steel with technologically advanced machinery.

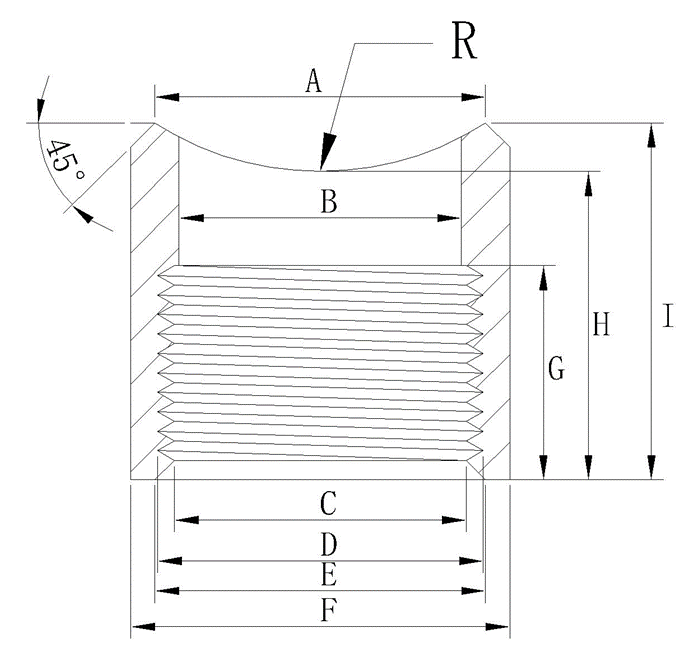

| A | B | C&D | E | F | G | H | |
1/2*1-1/4 | 24 | 18 | NPT 1/2" | 23 | 28 | 16 | 26.5 |
1/2*1-1/2 | 24 | 18 | NPT 1/2" | 23 | 28 | 16 | 26.5 |
1/2*2 | 24 | 18 | NPT 1/2" | 23 | 28 | 16 | 26.5 |
3/4*1-1/4 | 27 | 23 | NPT 3/4" | 27 | 32 | 20 | 29 |
3/4*1-1/2 | 27 | 23 | NPT 3/4" | 27 | 32 | 20 | 29 |
3/4*2 | 27 | 23 | NPT 3/4" | 27 | 32 | 20 | 29 |
1*1-1/2 | 35 | 29 | NPT 1" | 34.5 | 39 | 23 | 32 |
1*2 | 35 | 29 | NPT 1" | 34.5 | 39 | 23 | 32 |
1*2-1/2 | 35 | 29 | NPT 1" | 34.5 | 39 | 23 | 32 |
1*3 | 35 | 29 | NPT 1" | 34.5 | 39 | 23 | 32 |
1*4 | 35 | 29 | NPT 1" | 34.5 | 39 | 23 | 32 |
1-1/4*2 | 43.5 | 37.5 | NPT 1-1/4" | 43 | 48 | 25 | 35 |
1-1/4*2-1/2 | 43.5 | 37.5 | NPT 1-1/4" | 43 | 48 | 25 | 35 |
1-1/4*3 | 43.5 | 37.5 | NPT 1-1/4" | 43 | 48 | 25 | 35 |
1-1/4*4 | 43.5 | 37.5 | NPT 1-1/4" | 43 | 48 | 25 | 35 |
1-1/4*6-8 | 43.5 | 37.5 | NPT 1-1/4" | 43 | 48 | 25 | 35 |
1-1/2*2-1/2 | 50 | 43.5 | NPT 1-1/2" | 49 | 55 | 26 | 41.5 |
1-1/2*3 | 50 | 43.5 | NPT 1-1/2" | 49 | 55 | 26 | 41.5 |
1-1/2*4 | 50 | 43.5 | NPT 1-1/2" | 49 | 55 | 26 | 41.5 |
1-1/2*5-6 | 50 | 43.5 | NPT 1-1/2" | 49 | 55 | 26 | 41.5 |
2*2-1/2 | 63 | 55.5 | NPT 2" | 61 | 67 | 27 | 45 |
2*3 | 63 | 55.5 | NPT 2" | 61 | 67 | 27 | 45 |
2*4 | 63 | 55.5 | NPT 2" | 61 | 67 | 27 | 45 |
2*6 | 63 | 55.5 | NPT 2" | 61 | 67 | 27 | 45 |
2-1/2*3 | 74 | 66.5 | NPT 2-1/2" | 76 | 80.5 | 28 | 45 |
2-1/2*4 | 74 | 66.5 | NPT 2-1/2" | 76 | 80.5 | 28 | 45 |
2-1/2*6 | 74 | 66.5 | NPT 2-1/2" | 76 | 80.5 | 28 | 45 |
Surface: Zinc-plated, unplated4. Material: Carbon steel
